foreword:
this is a step-by-step advice, missing tons of background infos, our experts like fox_m can much better explain …. don’t ask me questions, I have no clue! That’s the way I’m doing it…

ADDENDUM:
Fox had added the 'pro' version of this task here:
discussions.apple.com/docs/DOC-9991?et=watches.email.document

THANK YOU for sharing your incredible indepth knowledge!!


Step #1 flip logo
Open your logo in Preview (or any paint.app) and mirror it vertically.

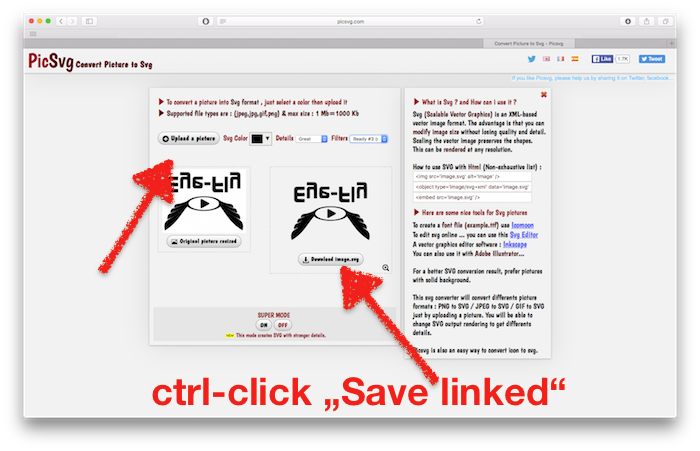

Step #2 convert it to svg
goto picsvg.com (there are several others)
upload pic, set color to black, details: great, filters Ready #3



keep in mind:
to ‚paint’ vectors around pixels is a tricky process. Don’t try to vectorize HiDef photos or such. Best results are b/w png with some higher resolution (many limited to 3500pix wide).

Download image.svg

In Finder, you can check results by selecting the file and hit spacebar - I noticed on some conversions, curves got edgy…try a diff. conversion service….

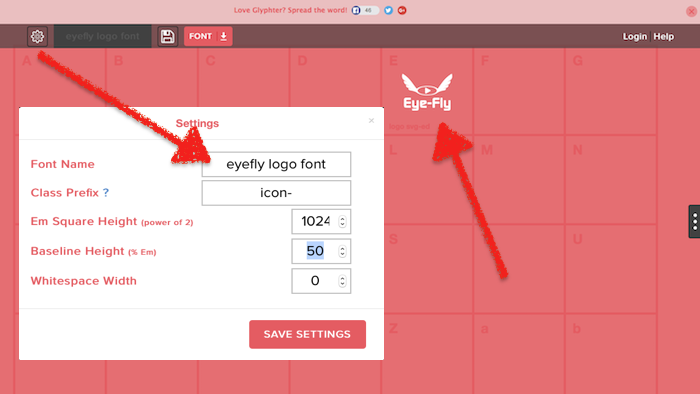

Step #3 make a font
goto glyphter.com
drag .svg onto any letter
(make your life easier, here: e for eye-fly…)




click the gear icon
give a useful, unique font-name

click Font, download font

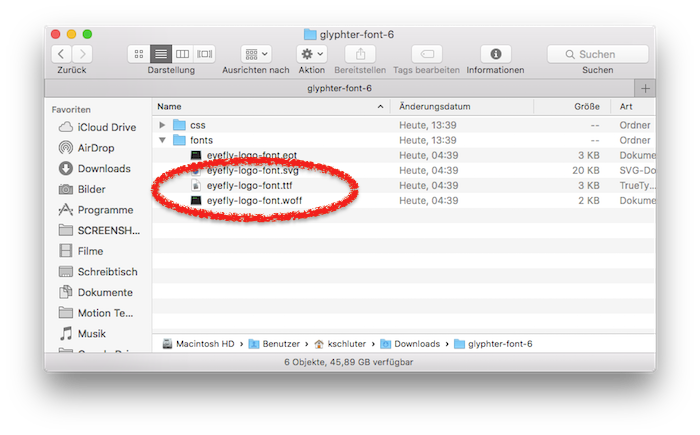

Step #4 install custom font
double click downloaded glyphter.zip, double click .ttf file

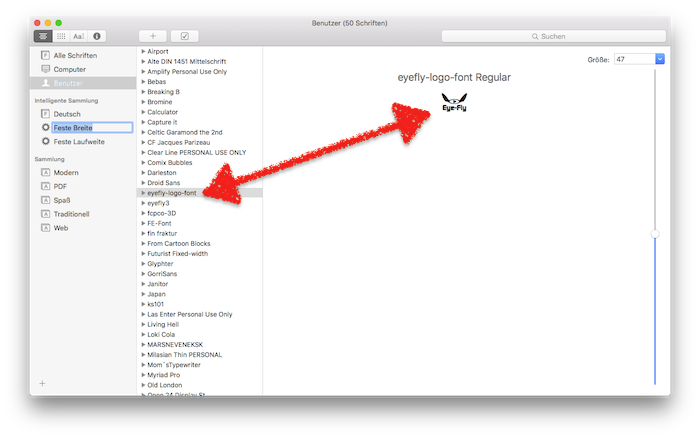

Font Book.app will open, probably noticing a minor error




click install

Your System now has a new font, containing one ‚letter‘ = logo

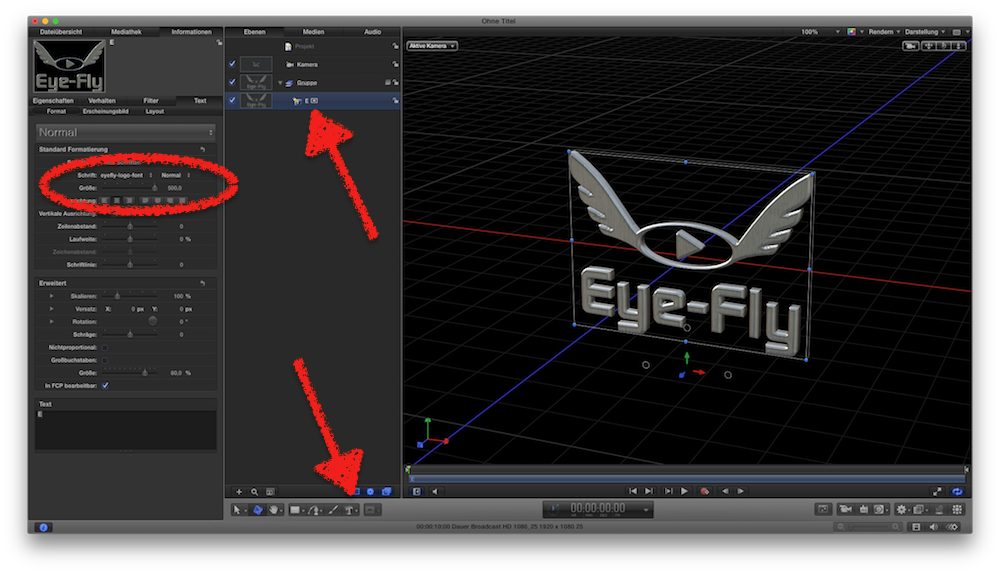

Step #5 make it shine
in Motion 5, create new project; add camera; select 3D Text; type your logo-letter (here E); in the Inspector select your custom font - tadaaah!



Apply materials, colors, ambience, lights, animations.

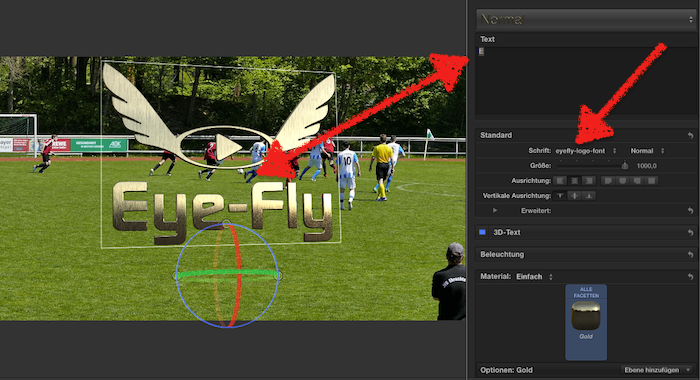

… same in FCPX:
apply a title, type your letter, select your custom-font; apply 3D, material, colors, animate…..



… this is the basics. There are several other service and options. For nice animations, consider to split the logo in parts before vectorizing (svg) it. A lot of bling is done by choosing materials & lights… due to fonts are vectors, you can really zoom in deeply, or do those StarWars-ish 'flying over audiences head' animations, and finally, in M5, you can do use the many 'virtual canera' effects …

Hi Karsten,

thanks for sharing that. I wonder whether the colors will be maintained or everything will be converted into black
Quote: "set color to black"

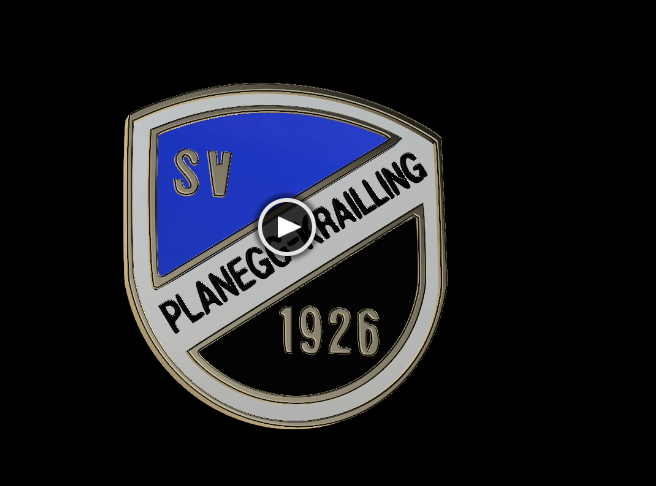

Via PN you shared your SV Planneg-Krailing soccer club logo (black&white colored) as such could you take over the original colors or adjusted that later one which would work for some easy soccer club logos but not for all ;-(

Regards
Tobias

PS: had to raise that here in order to achieve the 3 posts for newbies

Schnurr wrote:
excellent question, should have mention that in my recipe:
Fonts don't have a color.

When you're thru this process, converting a graphic into a 'letter'/glyph, you have to apply its color (and material) in Motion.

For my examples, I'm using Pixelmator to seperate each color into its own layer. Each layer then gets converted into plain black. Later, in Motion, I 'stack' each glyph over each other and apply colors and materials.-

.. indeed, it gets tricky, when logos contain gradients or textures....

Keep in mind:
we abuse here a '3D text' function to create 3D objects...
If you're a master in that, you can create stuff like
www.fcp.co/forum/6-motion-5/25853-real-3...cult-of-coffee#79380

…
