Has anyone tried Mid-Side recording in FCPX? Is there a tool within FCPX for decoding a MS recording?
LLAP,
James
Taipei, Taiwan

Please Log in or Create an account to join the conversation.

FCPX and Mid-Side recordings 21 Feb 2015 10:23 #60156

  • ronny courtens
  • ronny courtens's Avatar
  • Offline
  • Moderator
  • Moderator
  • Posts: 4239
  • Karma: 196
  • Thank you received: 896
Hi James,

You deal with MS audio in FCP X just like you would deal with it in any DAW. In a regular MS recording you will get 2 mono channels from the audio guy: 1 Mid-audio channel and 1 Side-audio channel.

- Put the Mid-audio clip in the timeline and leave it untouched.

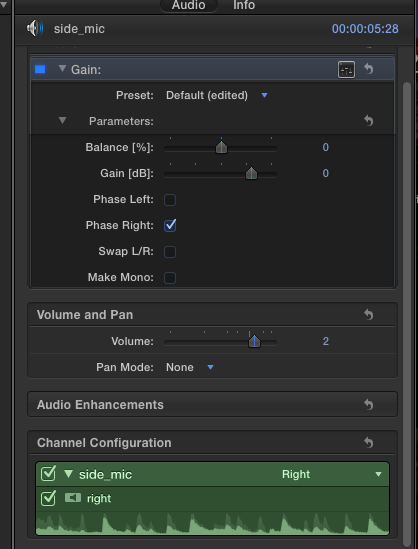

- Put the Side-audio clip right under the M-audio clip. Set its Channel Configuration to "Left".
- Add a second instance of the Side-audio clip right under the first instance. Set its channel configuration to "Right". Then add the Gain filter to the clip and in the Inspector > Gain Filter parameters check the "Phase Right" checkbox.



Play the timeline. When mixing, use the Mid-channel to get the level of the instrument relative to the overall mix. Then bring up the two Side-channels. The more Side-channel audio you add, the wider the stereo spread will be.

- Ronny
Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by ronny courtens.

FCPX and Mid-Side recordings 22 Feb 2015 03:38 #60196

  • wdevn
  • wdevn's Avatar Topic Author
  • Offline
  • Gold Boarder
  • Gold Boarder
  • Posts: 242
  • Karma: 1
  • Thank you received: 15
Thanks a lot Ronny!

So in this case just add a second instance of the Side audio under the first and adjust?
I rather not use two mins (one cardioid / omni and one figure 8) so I am looking into getting an all-in-one MS mic to record.
LLAP,
James
Taipei, Taiwan

Please Log in or Create an account to join the conversation.

FCPX and Mid-Side recordings 22 Feb 2015 04:44 #60201

  • Redifer
  • Redifer's Avatar
  • Offline
  • Platinum Boarder
  • Platinum Boarder
  • Posts: 865
  • Thank you received: 79
Couldn't you just take the side mic, change it's Pan Mode to "Dialog" (or Dialogue as FCPX spells it, I don't recommend pronouncing the last letters aloud) and then adjust the PAN to 100% which centers the audio? Seems a lot easier to me, unless there's something I'm completely missing in this conversation (which I admit is possible).

Please Log in or Create an account to join the conversation.

FCPX and Mid-Side recordings 22 Feb 2015 08:22 #60216

  • ronny courtens
  • ronny courtens's Avatar
  • Offline
  • Moderator
  • Moderator
  • Posts: 4239
  • Karma: 196
  • Thank you received: 896
@Joe:

Interesting suggestion, so I tried it on a non-decoded MS recording but it does not work. I'm afraid it's a little more complicated that this. You need 180° phase inversion to recreate the stereo spread from a mono Side-mic recording, and none of the Surround options allow for this. For anyone interested in this, here's a simplified description of how MS recording and decoding works: www.bhphotovideo.com/explora/audio/tips-...ophone-configuration

@James:

- If you want to use an all-in-one MS microphone you can find some models that have MS decoding integrated in the mic. The decoded signal is sent as a stereo signal to the recorder. The disadvantage of such a setup is that the stereo spread is pre-determined while recording (by adjusting the mic).

- Also, some recorders such as the Zoom have an MS option that decodes the signals of a dual mic MS setup.

Both of these options are fine if your only goal is to produce a stereo file that won't give any issues when played in mono (which was the original purpose of MS recording and the reason why MS is often used in professional broadcast audio recording). But if you want full control over the relation between the Mid-mic and the Side-mic channels in post the dual mic setup and the classic DAW approach will give you the best results.

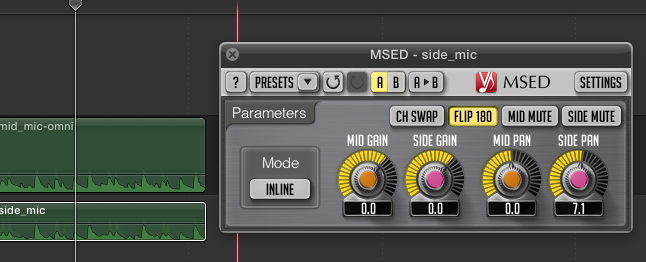

While looking for other options I found a free AU plugin for ProTools/Logic and FCP X that is supposed to make MS decoding easier. I may be an idiot, but I found it more difficult to work with than just duplicating the side channel and inverting the phase. Anyway, if you want to try it out just google "Voxengo MSED".



- Ronny
Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by ronny courtens.

FCPX and Mid-Side recordings 22 Feb 2015 10:57 #60219

  • wdevn
  • wdevn's Avatar Topic Author
  • Offline
  • Gold Boarder
  • Gold Boarder
  • Posts: 242
  • Karma: 1
  • Thank you received: 15

ronny courtens wrote: @James:

- Also, some recorders such as the Zoom have an MS option that decodes the signals of a dual mic MS setup.

While looking for other options I found a free AU plugin for ProTools/Logic and FCP X that is supposed to make MS decoding easier. I may be an idiot, but I found it more difficult to work with than just duplicating the side channel and inverting the phase. Anyway, if you want to try it out just google "Voxengo MSED".


Thanks again Ronny! I will put off the all-in-one mic solution and give this plug-in a try. I'll look into this more.
LLAP,
James
Taipei, Taiwan

Please Log in or Create an account to join the conversation.

FCPX and Mid-Side recordings 22 Feb 2015 12:26 #60222

  • mousefarm
  • mousefarm's Avatar
  • Offline
  • Junior Boarder
  • Junior Boarder
  • Posts: 33
  • Karma: 2
  • Thank you received: 3
@Ronny

There is a MS AU plugin for the Zoom H6 made by Zoom: www.zoom.co.jp/products/h6/software/

Unfortunately it is only 32 bit and therefore it will not work in FCPX. Let's hope they release af 64 bit version.

Please Log in or Create an account to join the conversation.

FCPX and Mid-Side recordings 22 Feb 2015 13:48 #60223

  • ronny courtens
  • ronny courtens's Avatar
  • Offline
  • Moderator
  • Moderator
  • Posts: 4239
  • Karma: 196
  • Thank you received: 896
Hey Anders,

Yes I have heard of that one. But you are correct: it's only 32-bit, so it won't work.

- Ronny

Please Log in or Create an account to join the conversation.

Last edit: by ronny courtens.

FCPX and Mid-Side recordings 22 Feb 2015 16:07 #60237

  • Roadswitcher
  • Roadswitcher's Avatar
  • Offline
  • Senior Boarder
  • Senior Boarder
  • Posts: 56
  • Karma: 1
  • Thank you received: 4
One of the very few options regarding compact MS mikes that can output raw M & S signals is the Sanken CMS-10, a short shotgun microphone primarily intended to be used on professional camcorders, mostly the highend shouldertype cameras, since they have a compatible frontal XLR 5 pin socket and can route this "stereo" input to 2 tracks from a choice of 4.

www.sanken-mic.com/en/product/product.cfm/9.1001300

This way, you can still get an audio couple from a soundman, over cable or wireless and keep a vision angle related separate MS audio track.
Used this setup in documentary shooting when we were still capturing on tape, mixing would be done by using three inputs on a studio mixdesk, first and third slice fed with the Side signal through a Y cable, while the second slice would get the Mono signal.

As Ronny already said, it's essential to have one of the Side inputs in reversed phase, something any mixer can do.
That was the good old analog way to do it, but it had the advantage of being a "visibly understandable" mixing principle, the middle pots position against the two (in sync) outer pots giving you a clear control of widening or narrowing the stereo base, depending on the picture content.

Another reason why I personally regret the absence of a graphical Mixer in FCPX, since in FCP7 we could emulate this way of "keeping an eye" on the stereo effect.
If only the Voxengo plugin had a more base related interface, it would have made up somhow this cruel absence of a mixer.

I enjoy usually to control my levels with keyframed envelopes, I enjoy having been given the gift of "roles", but sometimes having a "mixer", in real life or just virtual is a much more direct way to play with levels.

Just my "oldtimer" opinion.

Alex

Please Log in or Create an account to join the conversation.

FCPX and Mid-Side recordings 03 Mar 2015 02:23 #60736

  • simon.a.billington
  • simon.a.billington's Avatar
  • Offline
  • Gold Boarder
  • Gold Boarder
  • Posts: 179
  • Karma: 1
  • Thank you received: 10
Yeah there is a plugin that does allow for mid-side conversion in FCPX, the Direction Mixer.



Direction Mixer In FCPX

...or at least i think it comes with Final Cut. It's actually a Logic plugin and I own both platforms, so I'm unsure whether FCPX has access to this plugin because I have Logic on my system as well.

Just drop it on a mid-side recording, set the input to be MS expand the Spread to taste and adjust the Direction to balance out the centre image. Pretty simple

On the chance that it does come with FCPX, there are other plugins out there that will do it...

Such as this one from Plugin Alliance.
plugin-alliance.com/en/products/bx_control_v2.html#prettyPhoto

Or this one from Waves
www.waves.com/plugins/s1-stereo-imager

If your recording isn't in mid-side format, where the left channel has the mid information and the right has the side, then there is way to composite it together. If you don't know how then here are some brief instructions...

One way is to use a simple stereo audio editor...

- Create a new Stereo file
- Open up the mid recording, select it and copy it
- Paste it into the left channel
- Open up the side info, copy it
- Paste it into the right channel and save.

Care must be taken to ensure the audio phase is as perfectly aligned as can be, otherwise you can end up with some phasing issues. If both recordings were made at the same time, then there is a good chance they already line up perfectly. Again, assuming that you MAY not know much about the subject matter.

The other way to do this is to construct a Compound Clip in FCPX...

- In the Browser, create an empty Compound Clip, name it and double-click it to open
- Place the mid file into the Storyline
- Place the side file underneath.

Compound Clip Layout

...again phase coherence COULD cause an issue, as above, but at least this method is non-destructive. So you can zoom in close on the storyline editor and nudge the audio a millisecond at time if you had to, making sure those audio peaks are perfectly aligned.

- On both tracks use the Inspector and place them into Stereo Left/Right mode.
- The Mid track should be panned hard left, the Side track hard right
- Exit the Compound Clip and place a Mid-Side plugin on it as you would with any normal mid-side recording

Mid Panning Details

- You can even take this one step further and add extra mid-side processing on your clips

Waves Center will help you fine tune the balance of the sound.



Waves Center Image In Context

Apparently the Stereo Imager mentioned above will not only decode your M/S signal, but will allow you to further manipulate its stereo field.



Sticking with the Waves theme, another plugin that I DO own that is very good with manipulating the mid-side information is there H-EQ. This plugin does require extra horsepower, but can produce some amazing results.



Waves H-EQ Image In Context

Hope this post is helpful. :)

Please Log in or Create an account to join the conversation.

Last edit: by simon.a.billington. Reason: Image Link Issues

FCPX and Mid-Side recordings 03 Mar 2015 05:57 #60739

  • wdevn
  • wdevn's Avatar Topic Author
  • Offline
  • Gold Boarder
  • Gold Boarder
  • Posts: 242
  • Karma: 1
  • Thank you received: 15
Thanks Simon! I will continue playing around with Mid-Side recording. So far I have made some great recordings using this.
LLAP,
James
Taipei, Taiwan

Please Log in or Create an account to join the conversation.

FCPX and Mid-Side recordings 03 Mar 2015 12:05 #60748

  • BenB
  • BenB's Avatar
  • Offline
  • User is blocked
  • User is blocked
  • Posts: 10102
  • Karma: -34
  • Thank you received: 1277
All Logic Pro X filters come with FCPX, when you enact the "Download Additional Content" function. No need to have LPX installed.

Please Log in or Create an account to join the conversation.

Last edit: by BenB.

FCPX and Mid-Side recordings 05 Mar 2015 05:03 #60868

  • simon.a.billington
  • simon.a.billington's Avatar
  • Offline
  • Gold Boarder
  • Gold Boarder
  • Posts: 179
  • Karma: 1
  • Thank you received: 10
Good to know Ben.

I was never sure whether the installation of Logic made them, well ALL of them available to FCPX.

Please Log in or Create an account to join the conversation.

FCPX and Mid-Side recordings 03 Feb 2018 11:03 #93866

  • MadPanic
  • MadPanic's Avatar
  • Offline
  • Fresh Boarder
  • Fresh Boarder
  • Posts: 2
  • Thank you received: 0
I know this is an old thread, but I use MSED all the time for MS decoding, but it has to work with stereo channel configurations. If you have been given two separate mono files, one for mid and one for side, then you will need to make a compound clip and set the type from dual mono to stereo, then use the compound clip with the MSED plugin applied and set to decode rather than inline. If you are are creating compound clips though, you may as well do it as already described manually.

If however you are given a stereo file where mid is on the left and mid-side on the right, or a multichannel polywav. then the plugin is a really nice solution. Set the clips audio properties as stereo (and for multichannel files, just select the channels of interest, i.e. mid & mid-side), and again setting the plugin to decode. The level of the side channel will determine stereo width.

Please Log in or Create an account to join the conversation.

FCPX and Mid-Side recordings 06 Mar 2018 12:53 #94482

  • simon.a.billington
  • simon.a.billington's Avatar
  • Offline
  • Gold Boarder
  • Gold Boarder
  • Posts: 179
  • Karma: 1
  • Thank you received: 10
Yeah, that should work too, MadPanic.

Please Log in or Create an account to join the conversation.

FCPX and Mid-Side recordings 06 Mar 2018 13:00 #94483

  • FCPX.guru
  • FCPX.guru's Avatar
  • Offline
  • Platinum Boarder
  • Platinum Boarder
  • bbalser.com
  • Posts: 3729
  • Karma: 34
  • Thank you received: 517
Dialogue is the more proper form, dialog is American and used when talking computers.
writingexplained.org/dialog-vs-dialogue-difference

Please Log in or Create an account to join the conversation.

FCPX and Mid-Side recordings 06 Mar 2018 13:25 #94485

  • Albo
  • Albo's Avatar
  • Offline
  • Gold Boarder
  • Gold Boarder
  • Posts: 184
  • Thank you received: 3
Very interesting and learned a lot with this conversation.
My question: It what shooting condition would you use this recording technique.
I can imagine with music but any other moments it could be used?
Requires some mic setup and a fixed shooting set.

Please Log in or Create an account to join the conversation.

FCPX and Mid-Side recordings 06 Mar 2018 14:31 #94491

  • MadPanic
  • MadPanic's Avatar
  • Offline
  • Fresh Boarder
  • Fresh Boarder
  • Posts: 2
  • Thank you received: 0
It's good for getting room tone, ambience and wildtracks in a stereo field. For dialogue, it all depends on the shot, where you are placed, and what else is going on. For example, I had a shot a few weeks ago where a car pulls up, someone gets out & delivers dialogue as the car drives away. In post, there is now a choice over just using the mono car driving & dialogue or making use of the mid-side to have stereo placement of the car arriving and leaving as well as the dialogue. Because of this, I tend to record the mid-side always, it costs nothing but an extra wav file., but could capture nice ambience as well as the main focus of the shot.

Please Log in or Create an account to join the conversation.

FCPX and Mid-Side recordings 07 Mar 2018 12:42 #94500

  • Albo
  • Albo's Avatar
  • Offline
  • Gold Boarder
  • Gold Boarder
  • Posts: 184
  • Thank you received: 3
Thanks for the info.
I will surely try this on the first occasion I have a simple shoot with a simple setup.

Please Log in or Create an account to join the conversation.

FCPX and Mid-Side recordings 21 Mar 2018 06:49 #94744

  • simon.a.billington
  • simon.a.billington's Avatar
  • Offline
  • Gold Boarder
  • Gold Boarder
  • Posts: 179
  • Karma: 1
  • Thank you received: 10

MadPanic wrote: It's good for getting room tone, ambience and wildtracks in a stereo field. For dialogue, it all depends on the shot, where you are placed, and what else is going on. For example, I had a shot a few weeks ago where a car pulls up, someone gets out & delivers dialogue as the car drives away. In post, there is now a choice over just using the mono car driving & dialogue or making use of the mid-side to have stereo placement of the car arriving and leaving as well as the dialogue. Because of this, I tend to record the mid-side always, it costs nothing but an extra wav file., but could capture nice ambience as well as the main focus of the shot.


I’ while back I came up with the idea of taking 5-10 minutes to take an impulse response of the “spaces” scenes were shot in, only to have them on hand later when working on the audio for a production.

The downside to that is you need to be dragging a decent set of speakers around with you to location. Although, IK Multimedia’s iLoud speakers should make this quite achievable and would be worth the investment if I ever had the opportunity to carry this idea out.
