TOPIC: BlackMagic SpeedTest Stats

BlackMagic SpeedTest Stats 22 Dec 2013 02:30 #36906

  • MsJustine
  • MsJustine's Avatar Topic Author
  • Offline
  • Banned
  • Banned
  • I am in Durban, safe and warm...
  • Posts: 971
  • Karma: -76
  • Thank you received: 46
Hi everyone,

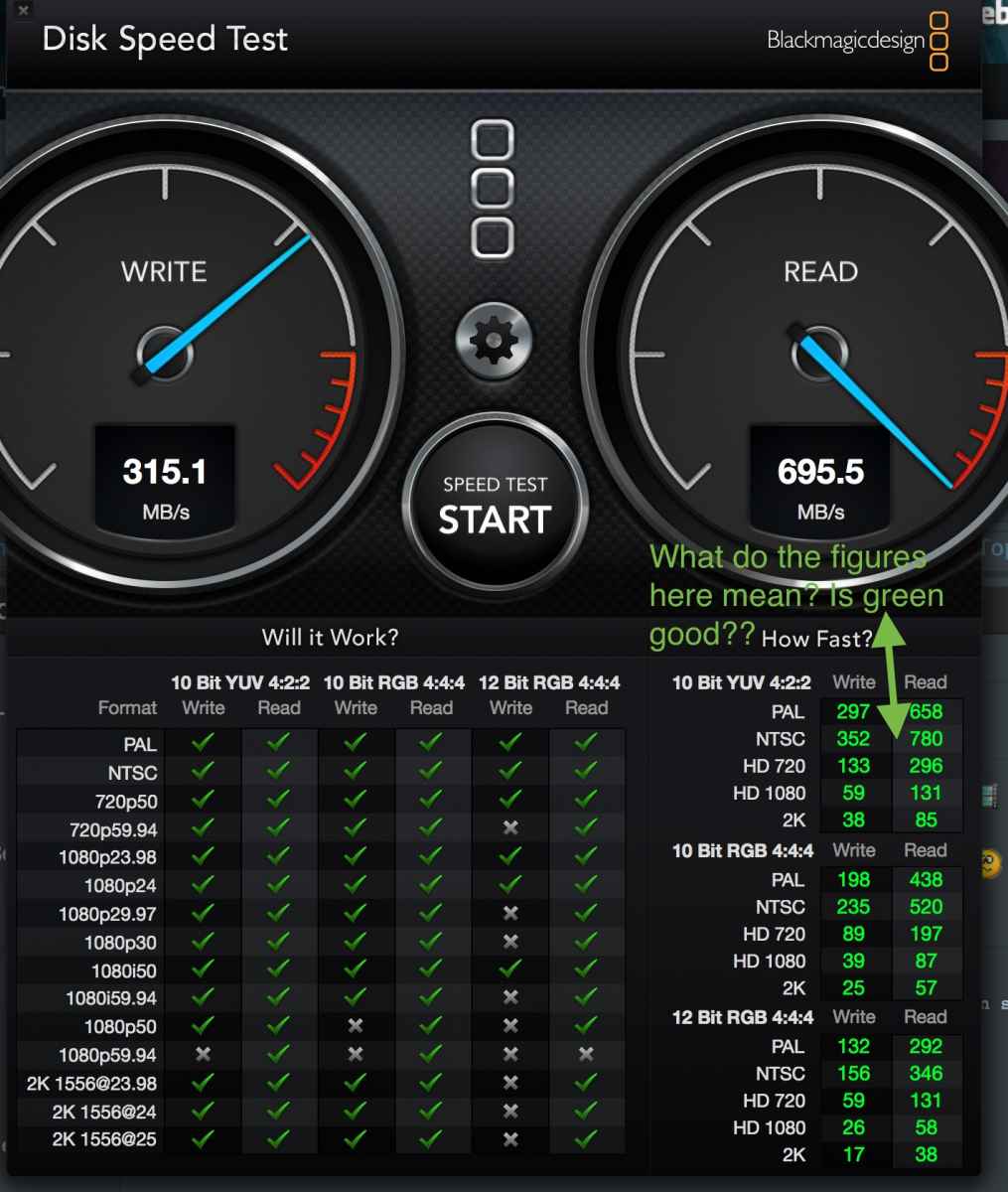

I have run the Blackmagic SpeedTest, I do not however understand the result. Can someone interpret the results?
Justine


Attachments:

Please Log in or Create an account to join the conversation.

BlackMagic SpeedTest Stats 22 Dec 2013 05:48 #36911

  • marchyman
  • marchyman's Avatar
  • Offline
  • Gold Boarder
  • Gold Boarder
  • Posts: 232
  • Karma: 5
  • Thank you received: 42
Frames per second. Notice the X in the write column for 720P 59.94 12 bit RGB 4:4:4 (left side table). Now look at the 12 BIT RGB 4:4:4 section of the table on the right side. HD 720 is listed at 59. 59 is less than 59.94 which is why the left hand table contains an X.

You can match up all the X in the left hand table to speeds that are less than the frame rate in the right hand table. It's the same data in a different form.

Please Log in or Create an account to join the conversation.

BlackMagic SpeedTest Stats 22 Dec 2013 05:53 #36912

  • MsJustine
  • MsJustine's Avatar Topic Author
  • Offline
  • Banned
  • Banned
  • I am in Durban, safe and warm...
  • Posts: 971
  • Karma: -76
  • Thank you received: 46
Just an observation, would it not make more sense for the table on the right to indicate with red numbers the fail value of that field, in other words right at the bottom, the 2K is 17 and 38 in green, is this a passing value or a failing value? If I can see that 17 is too low then have in brackets the lowest "passing value" for example 17[red] 50[pass] for both read and right values?

Please Log in or Create an account to join the conversation.

BlackMagic SpeedTest Stats 26 Dec 2013 15:09 #37319

  • dgwvideo
  • dgwvideo's Avatar
  • Offline
  • Platinum Boarder
  • Platinum Boarder
  • Posts: 1984
  • Karma: 32
  • Thank you received: 244
The 17 and 38 in your example are neither Passing or Failing values. They are the determined Read and Write values according to Blackmagicdesign's speed test application. The chart on the left is the useful portion which tells you which formats your system can efficiently read and write based on those results. The X indicates that a particular format requires faster speeds than the results for optimum editing.
Creating history....one edit at a time !

Please Log in or Create an account to join the conversation.

BlackMagic SpeedTest Stats 26 Dec 2013 15:12 #37320

  • MsJustine
  • MsJustine's Avatar Topic Author
  • Offline
  • Banned
  • Banned
  • I am in Durban, safe and warm...
  • Posts: 971
  • Karma: -76
  • Thank you received: 46
Read and write values in what unit of measurement? Does that mean it reads 17 frames a second at the 2K file size and writes 38 frames a second to the disk?

Please Log in or Create an account to join the conversation.

BlackMagic SpeedTest Stats 26 Dec 2013 15:30 #37323

  • dgwvideo
  • dgwvideo's Avatar
  • Offline
  • Platinum Boarder
  • Platinum Boarder
  • Posts: 1984
  • Karma: 32
  • Thank you received: 244
Yes. That measurement is Frames per Second. There is a complete instruction guide that identifies what each area of the test is and you can find that under the help menu of the Speed Test application. It is a very detailed pdf document.
Creating history....one edit at a time !

Please Log in or Create an account to join the conversation.

BlackMagic SpeedTest Stats 26 Dec 2013 15:33 #37325

  • MsJustine
  • MsJustine's Avatar Topic Author
  • Offline
  • Banned
  • Banned
  • I am in Durban, safe and warm...
  • Posts: 971
  • Karma: -76
  • Thank you received: 46
Thank you, it really helps understand how effective drives will be going forward, thank you.
