DoN't miss vers. 2, down below!



Technically, this is NO title, but a Generator.
So, after unzipping the attached file, please put the resulting folder into
Movies/Motion Templates/GENERATORS

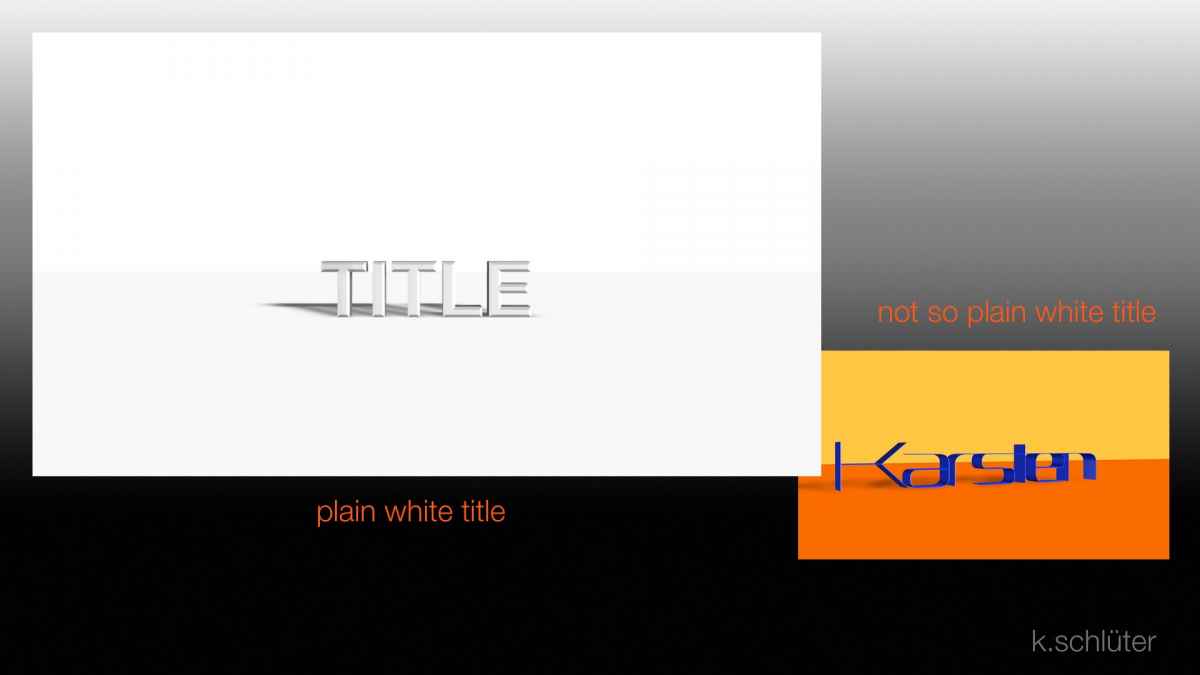

When applying it to your project, it looks like that…

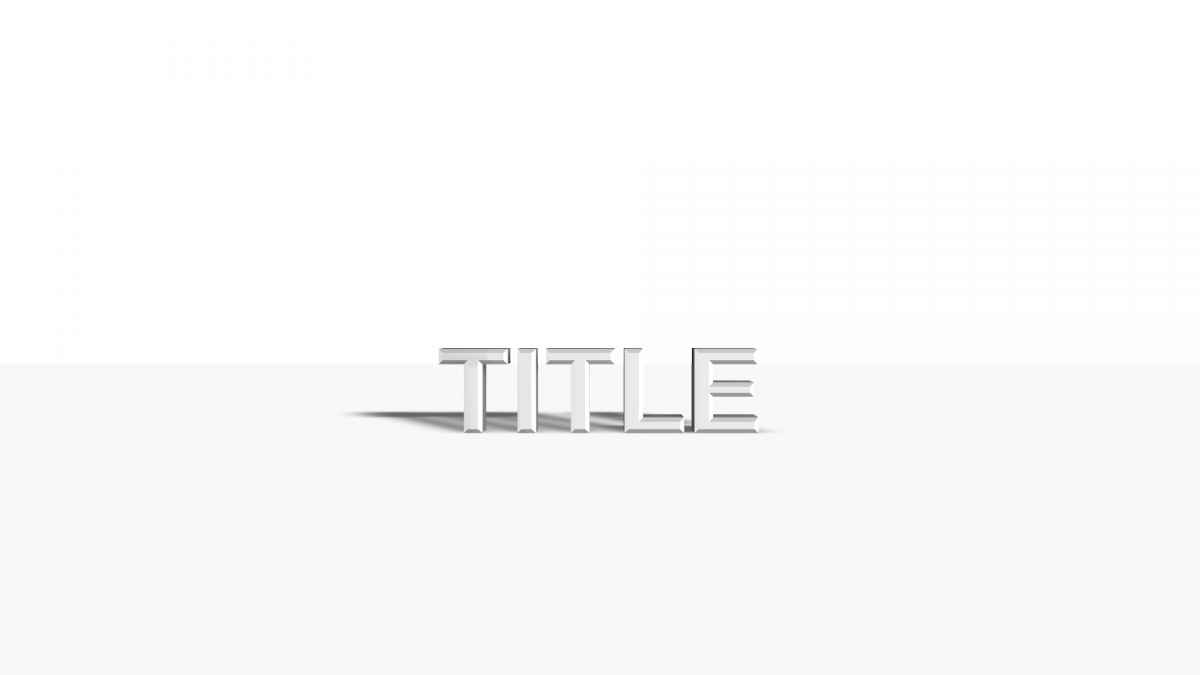

… plain white, quelle surprise

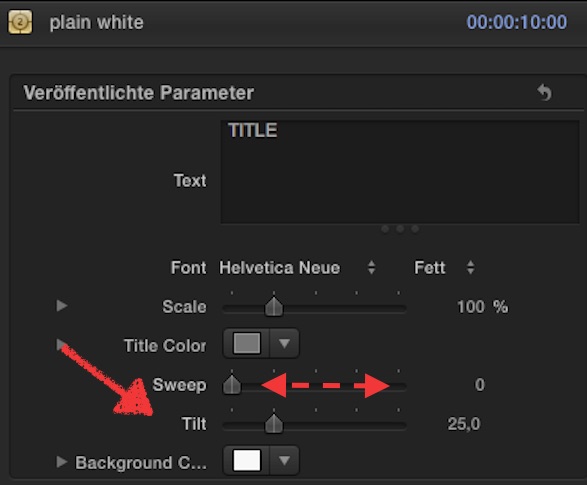

The Inspector unfolds a few parameters to play with, but - that ‚title‘ was for some school project - your options are restricted <silly laughter>




SWEEP - adds some movement, the camera slowly drives-by the title; slider to 0 (preset) it is plain from the front/not moving, 100 is about 30° to -30° (speed depends how long you make the generator).

TILT - changes the ‚height‘ of the camera, again limited …

… and, now the nutty part:
Title/Background Color allows to change from plain white to <cough> any color ….



I should mention: your version of FCPX should allow 3D text …

Enjoy that simple title, and feel free to customize it to your needs in Motion, don't be shy to reports your improvements here.

_______________________

NEW! Version 2
Thanks to Ben, givin' me a push in the right direction, I built a new version from scratch, which - drum roll - comes aftert unzipping into titles, yeah!

I changed two things:
• axed the color option for background - if it's called PlainWhite, it should be plain white

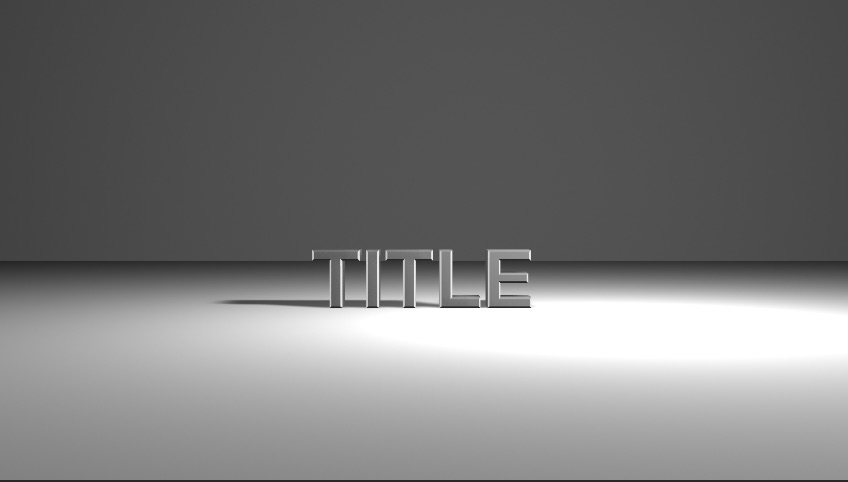

• a second light situation, a bit more drama:






File Attachment:

File Name: ks_plainwhite.zip
File Size:26 KB

NEW:

File Attachment:

File Name: ks_PlainWh...lev2.zip
File Size:23 KB

Please Log in or Create an account to join the conversation.

Last edit: by Karsten Schlüter. Reason: new, diff. version

PlainWhite Title 27 Dec 2015 16:17 #71763

  • BenB
  • BenB's Avatar
  • Offline
  • User is blocked
  • User is blocked
  • Posts: 10102
  • Karma: -34
  • Thank you received: 1277
Why make this a generator, why not just make it a title?

Please Log in or Create an account to join the conversation.

PlainWhite Title 27 Dec 2015 16:23 #71765

  • Karsten Schlüter
  • Karsten Schlüter's Avatar Topic Author
  • Offline
  • Moderator
  • Moderator
  • Posts: 3687
  • Karma: 61
  • Thank you received: 662

BenB wrote: Why make this a generator, why not just make it a title?


answer tomorrow ... we had a reason, I can't remember. :blink:

Please Log in or Create an account to join the conversation.

Last edit: by Karsten Schlüter.

PlainWhite Title 27 Dec 2015 16:32 #71767

  • BenB
  • BenB's Avatar
  • Offline
  • User is blocked
  • User is blocked
  • Posts: 10102
  • Karma: -34
  • Thank you received: 1277
Was just wondering, as I don't see anything in it that requires it to be a Generator. Easier to access titles in the Tilte Browser. Just saying...

Nice template, though. Very clean, not overly complicated. Like it a lot.

Please Log in or Create an account to join the conversation.

PlainWhite Title 28 Dec 2015 09:32 #71787

  • Karsten Schlüter
  • Karsten Schlüter's Avatar Topic Author
  • Offline
  • Moderator
  • Moderator
  • Posts: 3687
  • Karma: 61
  • Thank you received: 662

BenB wrote: Was just wondering, as I don't see anything in it that requires it to be a Generator. ....


Sooo, after some further investigations:

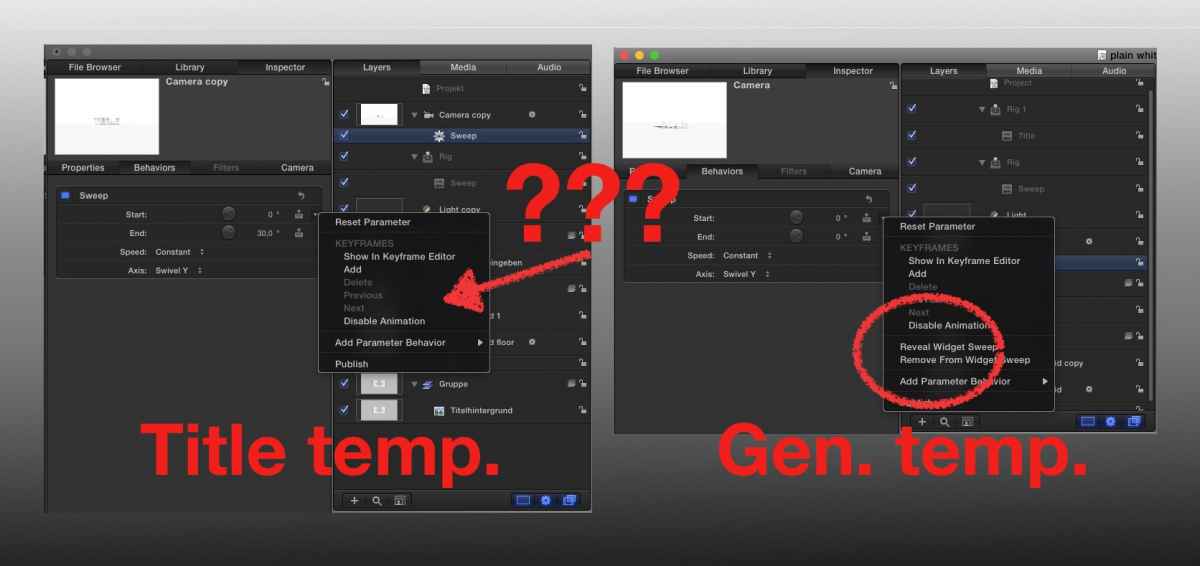

I'm not able to rig the Sweep camera behavior in a Title Template.

In the PlainWhiteTitle Generator, my 'Sweep' slider applies a value from 0 - 30°/-30° to allow a symetric camera movement.
In a Title, I can set those values manually, but can not rig them.... 'publishing' would work, but to make it simple, I'd like to have rig/slider

Why it is so… ? Tell me .......





And glad you like it. :cheer:
Attachments:

Please Log in or Create an account to join the conversation.

PlainWhite Title 28 Dec 2015 10:44 #71790

  • BenB
  • BenB's Avatar
  • Offline
  • User is blocked
  • User is blocked
  • Posts: 10102
  • Karma: -34
  • Thank you received: 1277
When you copy/paste a layer that already has parameters assigned to a rig, you still see the "rigged icon" there, but there's no rig for it to connect with. Broken link. All you can do is publish the parameter. You can't un-rig and re-rig it, either.

Just remember these two rules:
1 - You can NOT copy rigs between Motion projects.
2 - Therefore, if you copy layers with parameters assigned to rigs between Motion projects, the parameter has a broken rig link, and is stuck in rig limbo.

Delete the sweep behavior, and add it again from scratch. It'll work just fine. I do these in title templates quite often.

Please Log in or Create an account to join the conversation.

Last edit: by BenB.

PlainWhite Title 28 Dec 2015 21:04 #71801

  • Karsten Schlüter
  • Karsten Schlüter's Avatar Topic Author
  • Offline
  • Moderator
  • Moderator
  • Posts: 3687
  • Karma: 61
  • Thank you received: 662
thanks Ben, indeed, copy&paste was the culprit.

Made a new version, axed the colors, added a switcher fordirectional light and point light ... still plain white but with a little bit of drama (just one single light.... crazy).

For those, who like it more colorful, the old Generator is still avail.-

Please Log in or Create an account to join the conversation.
